Emscripten

back to main index

General

• backend of LLVM, uses Clang as frontend

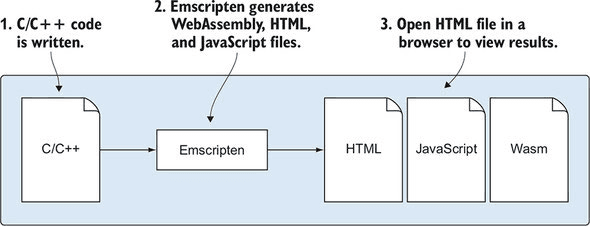

• usually generates
  • wasm module file
  • js plumbing file
    • downloads Wasm module
    • instantiates module
    • contains implementation of C standard library and others
    • if function from library needs to be exported and is not used by wasm, declare it explicitly
  • html webpage file
  • example:
  •
• approaches:
  • wasm + js + html
    • good for prototyping
    • rarely used in production
  • wasm + js
    • most used
    • contains C library
    • .js can be run directly by runtimes like Node
  • wasm (sometimes called standalone)
    • this generates so called side module
    • minimalistic approach, no Emscripten runtime (and no C library support in effect)
    • used for dynamic linking of multiple modules
      • usually multiple side modules are linked with main module, which contains Emscripten runtime and C library
    • .wasm can be run by runtimes like Node + manually written .js loading code
  • for passing anything more than int or float between modules, memory managment is required which usually is achieved with C library support (malloc(), free())
• it adds custom definition which can be checked

  #ifdef __EMSCRIPTEN__
    #include <emscripten.h>
  #endif


Side module vs main module

• -s SIDE_MODULE/MAIN_MODULE=<VAL>
  • 1 - enables
  • 2 - enables and optimizes unsued symbols
    • to keep symbols alive do one of two:
      • mark symbol in code with EMSCRIPTEN_KEEPALIVE
      • specify symbol in EXPORTED_FUNCTIONS while compiling/linking
        • -s EXPORTED_FUNCTIONS=_<function1>,_<function2>
• SIDE_MODULE does not require main()

Calling Emscripten

• by default, Emscripten generates wasm + js files
• to generate also html file add -o <filename>.html
  • -o stand for output
• to generate only wasm file add -o <filename>.wasm
